Why Boltless Shelving Wobbles — and the Patent That Wedges It Tight

Every warehouse manager knows the feeling: you push a loaded rack and the whole unit “gives” — a soft, sideways sway that gets worse as shelves fill up. The frustrating part? The rack isn’t overloaded. The problem is in how plug-in (boltless) shelving is connected in the first place.

Our answer is a patented plug-in joint design we call the Bump Locator: a small sloped bump on the plug that wedges the joint tighter the deeper it goes — so the wobble is engineered out before it starts.

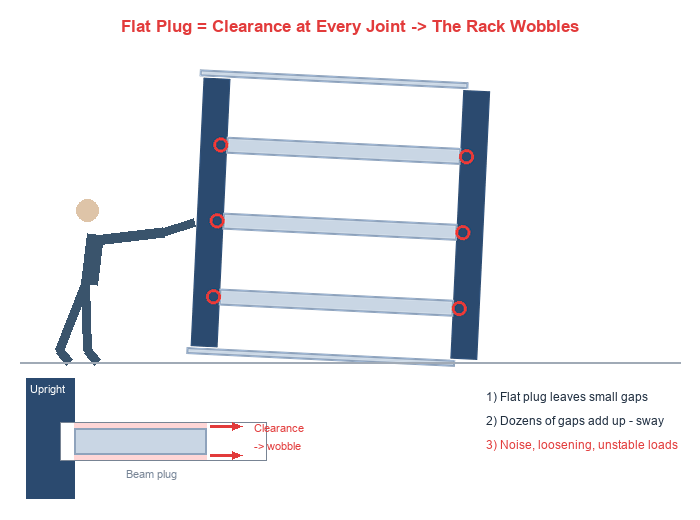

1. Why Plug-in Shelving Wobbles: The Built-in Clearance of Flat Plugs

Boltless shelving connects by pushing the plug on each beam end into a slot on the upright. Simple and tool-free — but the design has a hidden weakness:

• Flat plugs. A traditional plug is flat, so it relies on “close enough” dimensions to stay put.
• Manufacturing tolerance. Stamp spring-back and sheet-thickness variation mean every slot and every plug carries a fraction of a millimeter of deviation.
• Clearance that compounds. One loose joint is barely noticeable — but a rack has dozens of joints. Add the gaps together and the whole structure loses rigidity. That’s the sway you feel.

Why wobble matters (not just cosmetics):

1. Güvenlik — shifting or toppling loads, especially at height.
2. Long-term loosening — micro-movement at every joint wears pins and clips; the rack gets looser, not tighter.
3. Noise — constant rattling in aisles and backrooms.
4. Load distribution — sway concentrates stress on a few joints instead of spreading it evenly.

2. Why Traditional Fixes Don’t Stick

Over the years, manufacturers have “fixed” wobble after the fact:

These are all patches for the symptom. They don’t remove the gap — so the rack stops wobbling on day one and starts again after a few weeks of use.

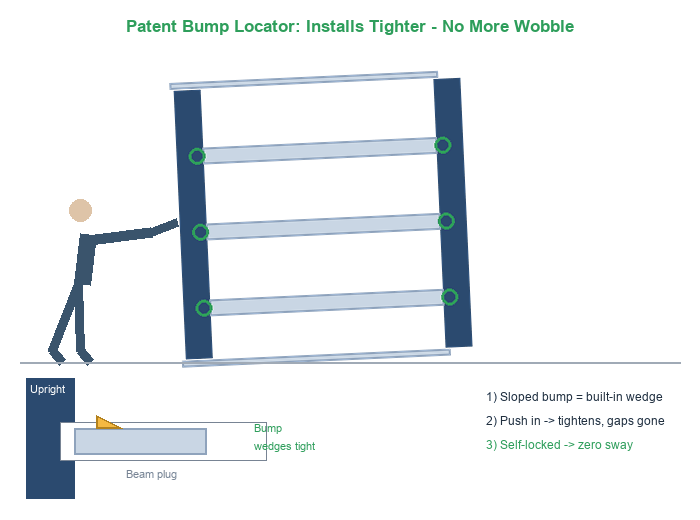

3. The Patented Answer: A Plug That Wedges Itself Tight

Bizim Bump Locator patent changes the joint itself:

• Yapı: a small raised bump with a slope on the plug face of the beam connector.
• How it works: as the plug slides into the upright slot, the sloped bump creates a wedge / interference fit — the deeper you push, the tighter it locks. By the time the beam is seated, the bump has absorbed the tolerance gap and locked the joint in both directions.
• Sonuç: with every joint on the rack wedged tight, the structure becomes rigid — the sway is gone.

Think of it as a built-in wedge: it gets tighter the more it’s used, not looser.

Companion feature: self-locking tie bars (barb design). On typical plug-in racks, the back tie bar has to be manually bent to lock — a slow step that also makes disassembly a hassle. Our tie-bar plug uses a barb-style self-lock: it clicks into place as you install it. No bending step, faster assembly, easy to take apart again.

4. What the Design Means for You

Where it applies: the whole boltless shelving range — warehouse and backroom storage, retail display shelving, garage and utility racks, e-commerce fulfillment.

The key point: the improvement is in the joint, so you keep everything you like about boltless shelving — no welding, no tools, quick assembly — and gain rigidity that feels welded.

5. About the Patent

• Patent name: Plug-in Bump Locator (design patent) — [Patent No. — insert]
• Related design: a Step Locator variant with the same wedging principle and a different geometry, available for specific product lines.
• Certificates, comparison samples and OEM options available on request — talk to our sales team (contact page).
